Build 001 - Core Infrastructure

Feb 26, 2025

Architecture

Main Components

• Raspberry Pi 4B (2 GB) with 128 GB SD card

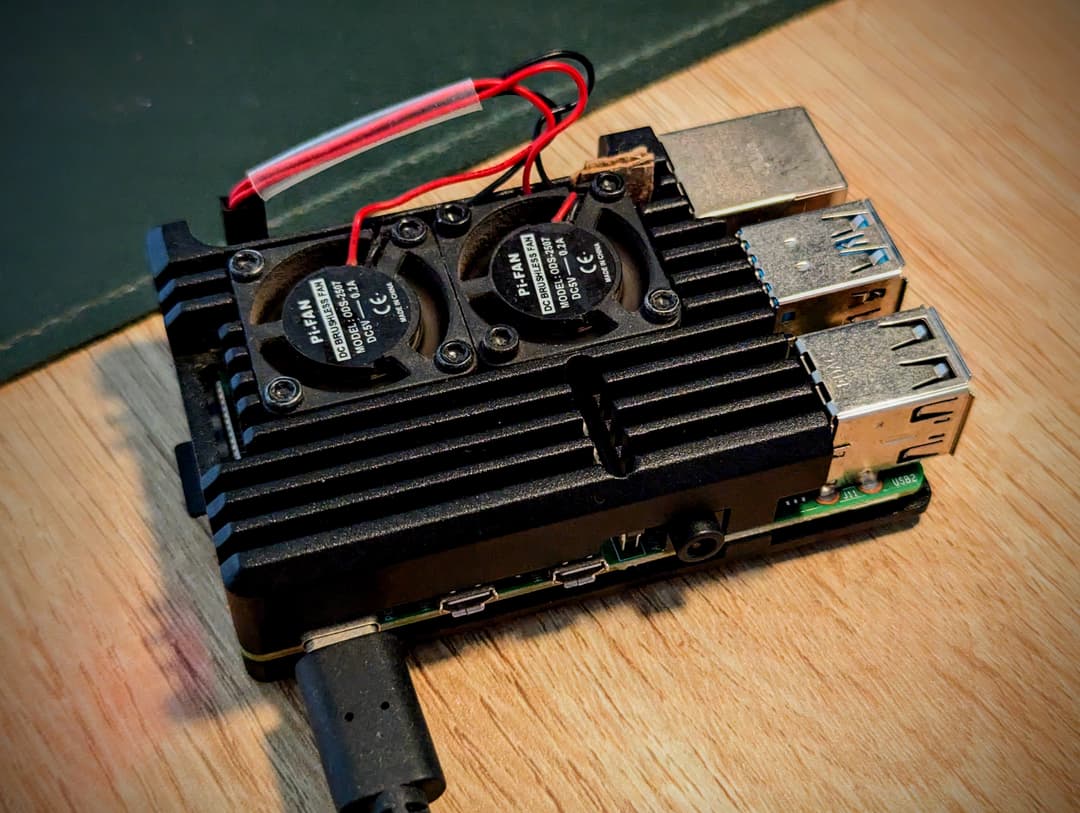

The main component of this system is the Raspberry Pi 4B 2 GB (RPi) with this beautiful black heat sink case and tiny fans. I am using the original RPi power adapter and networking connected over WiFi (for now at least, I don't have access to a direct Ethernet connection). Then, I set a DHCP reservation in my router so I don't have to worry about the IP address changing. I am running Ubuntu Server 24.0.2 LTS headless as my OS (installation details a little bit later).

Homelab Architecture

You can skip this part and go straight to the configuration if you are already familiar with these services.

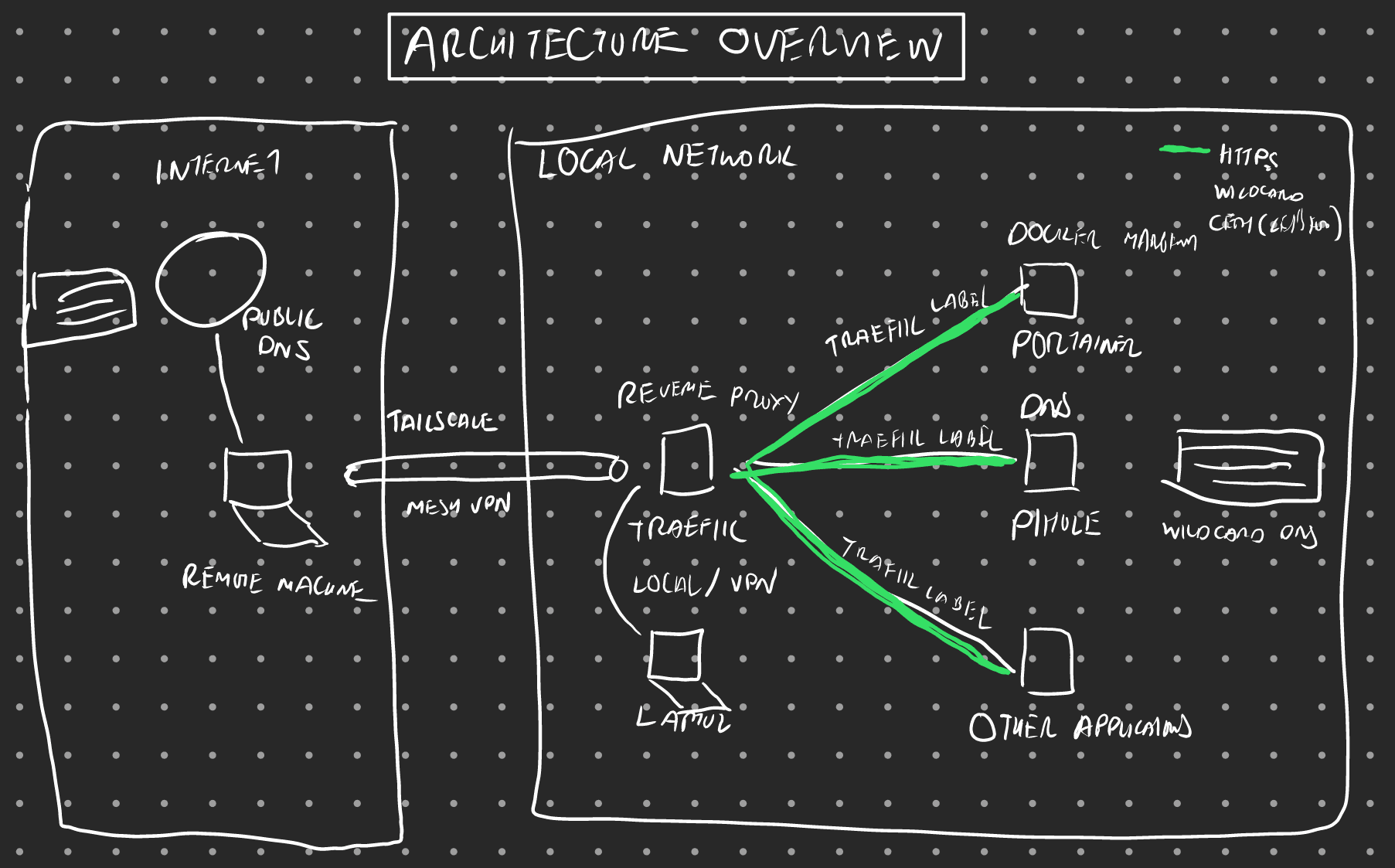

The architecture diagram shows my current homelab setup. In my local network, all my self-hosted services run on the RPi with docker containers. Using docker containers allows each individual application to be isolated from the rest of the applications in the machine. Each docker container contains the application and all the dependencies it needs to run safe inside the container where it cannot access resources from the outside and outside applications cannot access the container unless configured. This environment isolation is called containerization which allows for better security without having to isolate applications in different virtual machines (VMs).

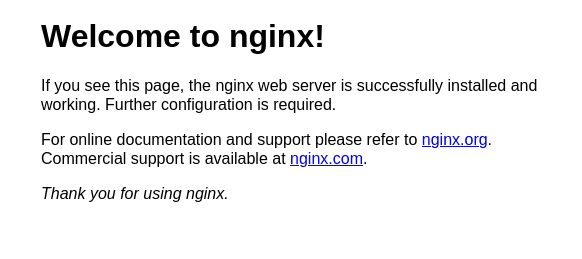

Deploying docker containers in your machine is as simple as running a docker command like {sh icon} $ docker run --name nginx -p 8080:80 nginx. This serves a basic nginx web page on port 8082 on your machine so this can be accessed by going to http://localhost:8080 (assuming you installed docker on the same machine).

If you haven't installed docker yet head on to https://www.docker.com/get-started/ to learn more about docker and how to get started. There is another alternative to the command shown above, you can also write a docker-compose.yml file that allows you to have a written configuration for the application.

services:
  nginx:
    image: nginx
    container_name: nginx
	  ports:
	  - "8080:80"

Running docker compose up spins up the container and docker compose down shuts it down, easy. The main benefit of this is you can easily spin up containers on any machine and expect the application to behave the same way, plus the ability automatically restart after reboots.

Reverse Proxy When you expose internal docker container ports through 8080:80 (external port:internal port) the machine dedicates the 8080 port exclusively to that application so it cannot be shared by other applications running on the same machine. Typically, you want to use known ports like 80 for HTTP, but since it is likely that other applications also use this port, we then expose a different external port like 8080, 8081, and so on. This is so we can still access the HTTP web entrypoint of our various applications. As the amount of your self-hosted applications grows, you will have to memorize which port accesses each application like port 8081 for Pihole, 8082 for Portainer, 8083 for Traefik, etc. It would be nice if we could simply memorize app.homelab.local and don't have to memorize these ports.

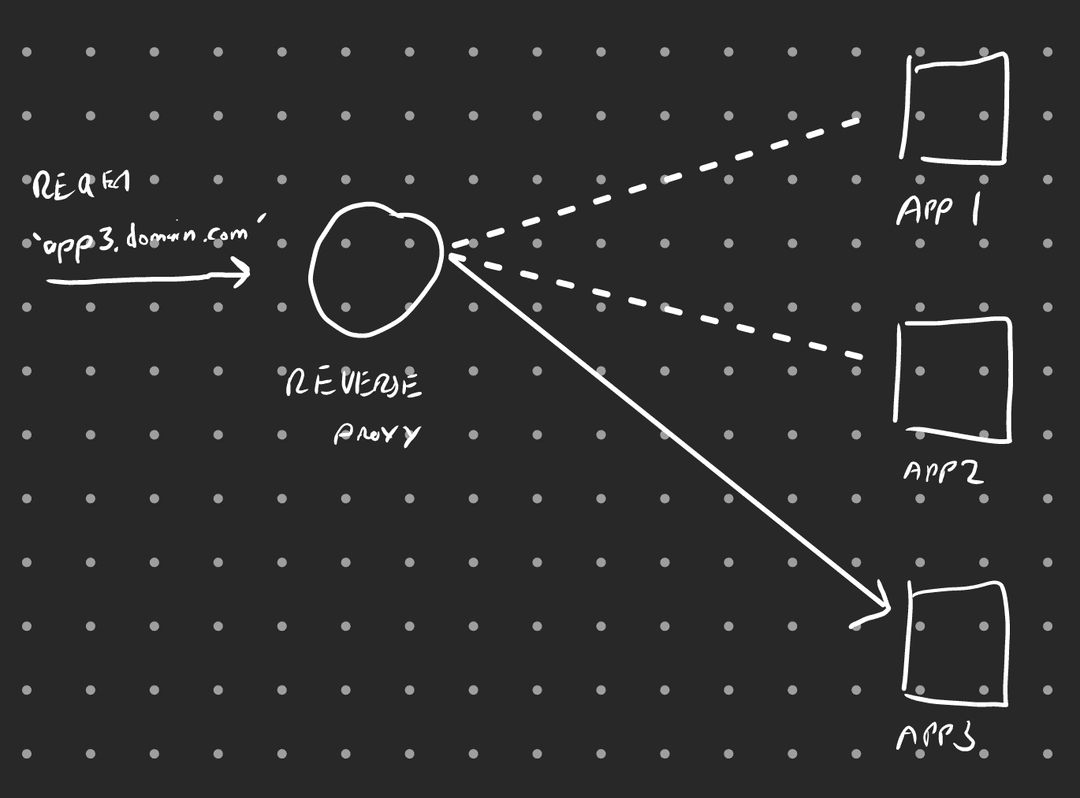

A reverse proxy solves this problem by handling routing to your application using various rules. A simple rule is to specify a unique host name for each application like pihole.homelab.local, portainer.homelab.local, traefik.homelab.local, etc. This would then handle the routing to the various ports exposed externally (pihole.homelab.local -> port 8081).

I am using Traefik as my reverse proxy which has great container integration that allows to route to your applications without having to expose them. This means no more weird port numbers like 8083. This provides as security benefit as all traffic has to go through the reverse proxy before being sent to the applications, as there is no direct access to these applications. Traefik also can handle TLS certificates so that all applications behind the reverse proxy would have an HTTPS connection.

Custom domain names through DNS As discussed, the reverse proxy would route the incoming requests based on the domain name ex. pihole.homelab.local, so that you can access the pihole application. But if you type http://pihole.homelab.local right now, you probably wouldn't reach the pihole application and get a DNS resolution error. The reason for this is to access the reverse proxy, you would need to know its IP address, say 192.168.0.10 for example. But your computer doesn't know what IP address belongs to the domain http://pihole.homelab.local so it asks a Domain Name System (DNS) Server for its IP address. This means for your computer to access this domain, you would need to map 192.168.0.10 to the domain http://pihole.homelab.local in your DNS server, called a DNS record. The DNS server acts as a repository that keeps records of names for various websites that you access.

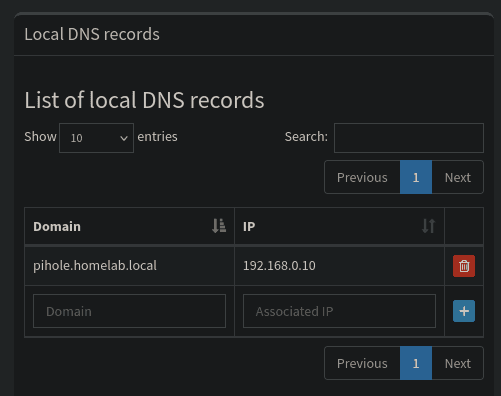

A common application used in the homelab space is Pi-hole, this is technically a network wide ad blocker but this acts as a local DNS server where you can add local DNS records to it. Shown below is a sample DNS record where pihole.homelab.local is mapped to the IP 192.168.0.10, which should be your reverse proxy. Now, when you enter this domain in your browser, it asks the DNS server the IP address and returns 192.168.0.10. Your computer then sends a request to the reverse proxy with this domain name and should route this to the pihole application dashboard.

It is also possible to setup a public DNS record if you own a domain. I used Cloudflare for the domain I own. Relevant instructions for this can be found here.

Remote access using Tailscale VPN Now that you can access your self-hosted services from any machine in your local network through the reverse proxy, wouldn't it be great to be able to access this outside of home? There are few ways to do this: one way, you can do port forwarding on your local network if you have a static IP global address from the ISP. (this one is risky because hackers can attack your network through the internet if not secured properly), another way is to set up a VPN connection to your home network. A VPN or Virtual Private Network allows you to extend your private local network to another trusted network you have access to. This creates an encrypted tunnel from your remote network to your home network. Although technically the data still goes through your the ISP and through the internet but no one can read your data due to encryption.

Tailscale is a mesh VPN that makes it super easy to set up a VPN across your devices. This creates a virtual network where each device you set up gets an 100.x.x.x IP address so your computer can ping or ssh into your other machines as if you are in the same local network.

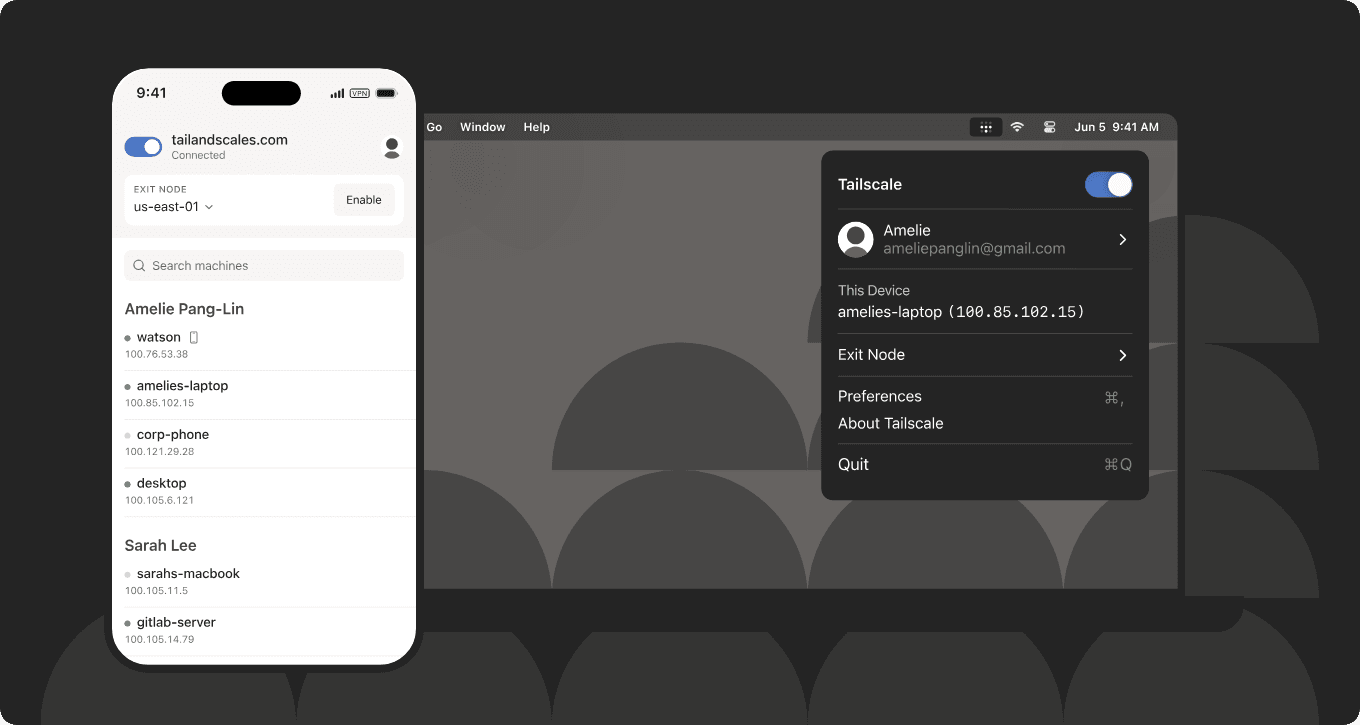

[Image from Tailscale.com]

Tailscale is completely free and easy to setup, simply just log in using email and start connecting to your devices in minutes. They support most platforms like Windows, Mac, Linux, Android, IOS, and even docker containers.

Notable Architecture Improvements Before I settled on this homelab architecture, I stumbled upon various issues or quirks I wanted to address. Feel free to skip this section as this is just additional info.

Tailscale docker sidecar Tailscale can be installed directly on the host machine i.e. Ubuntu server or run as a docker container. Initially, I thought it would be better to run Tailscale as a docker container as this would be easier to manage and deploy. The official documentation recommends to run Tailscale as a sidecar container, which runs along side a specified container so it's only limited to the network scope of that container. In other words, the Tailscale docker instance cannot access the other ports in the host machine, which provides better security as remote access can be limited to my reverse proxy.

I managed to get Tailscale working as a sidecar container and was able to connect remotely to my reverse proxy. However, I cannot reach any of my services because I did not have access to my local DNS server and this was because it was behind the reverse proxy and was only accessible from my home network. So I would have to figure out how to allow Tailscale to access the port 53 of the DNS server while acting as a sidecar container for Traefik. I was able to do this by using the subnet router feature of Tailscale that allows to advertise devices in the local subnet; useful if you need to access a device using Tailscale but installation is not possible. I didn't want to advertise every device on my network so I only advertised the IP of my host machine, i.e. 192.168.0.1/32. This did work well but I soon realized, this was exactly the same as installing Tailscale directly on the host machine, so I just scrapped the docker approach and just did a host installation.

As of writing this, I realized I could've just changed the network mode from sidecar to host, so I could've kept using Tailscale docker. But the host mode installation was simple enough and I didn't have to configure anything. Maybe I'll migrate to Tailscale docker someday.

The self-signed certificate itch

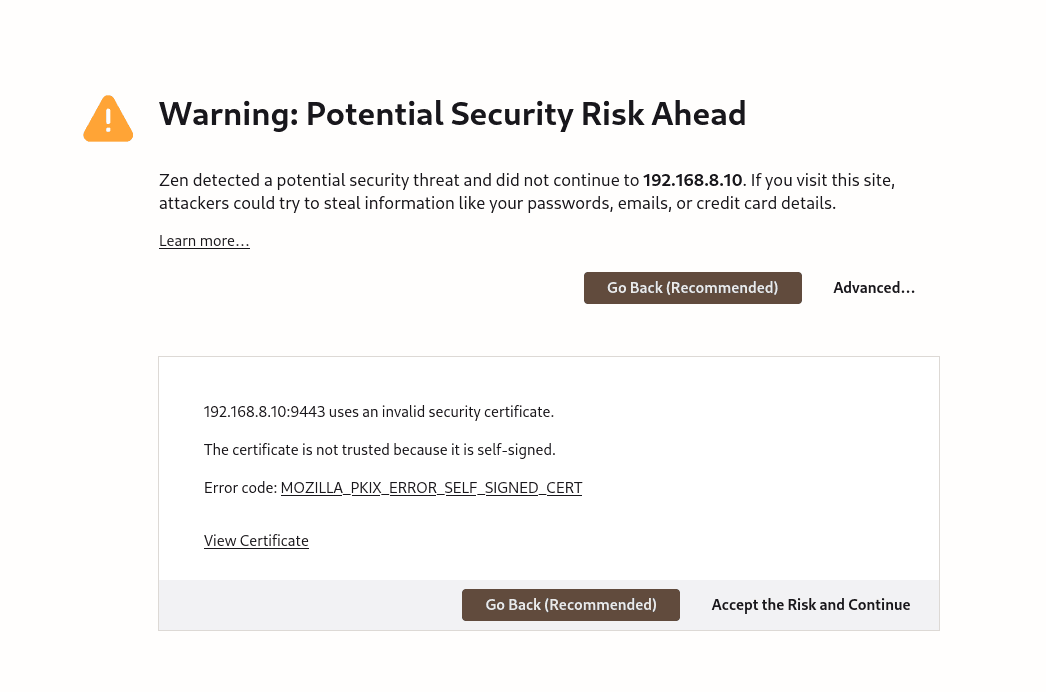

As you journey on self-hosting continues, you would have seen this browser warning countless times already. This is because to enable HTTPS connection to your self-hosted applications they would have to create self-signed TLS certificate to enable the website encryption in the browser. This is completely fine in a local homelab environment but there is always an itch to get an actual TLS certificate from a certificate authority (CA). Thankfully, obtaining a TLS certificate can be done free and easily because of the great initiative by Let's Encrypt. This is an open CA that provides free TLS certificates as long as you own a domain.

After some thought, I've decided will be a good experience to finally get a domain for myself, so I got one from NameCheap. They do sell some domains for cheap if you only need it for a year or two. Very good for just it testing out. Most reverse proxy can handle obtaining and renewing certificates from Let's Encrypt so I just followed the necessary config outlined in the Traefik docs and finally I don't have to see the annoying self-signed certificate warning.

Local DNS to Public DNS Finally now that I own a domain, I can take advantage of a Public DNS to route to my Tailscale reverse proxy IP. Don't worry random people from the internet will not have access to your Tailscale devices because Tailscale uses CGNAT reserved IP block 100.64.0.0 to 100.127.255.255 which are not publicly addressable. This in turn solves my local DNS problem earlier because remote devices can obtain resolve the domain names through a Public DNS (Cloudflare) instead of having to need to connect to my local DNS server. (Maybe I can now revert Tailscale to a sidecar container for added security now...maybe someday 😂)

Configurations

Device Setup

Installing Headless Ubuntu Server

--- start-multi-column: ID_jmbj

Number of Columns: 2
Column Size: [58%,39%]
Border: off
Shadow: off

--- column-break ---

--- end-multi-column

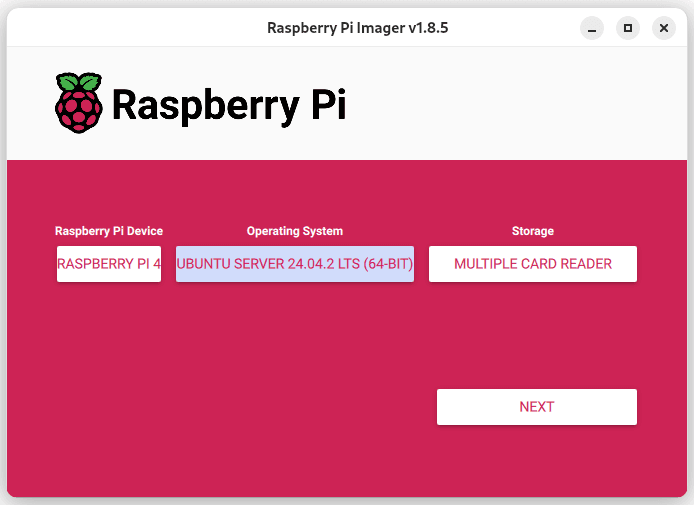

Using the Official Raspberry Pi Imager is the most convenient as this automatically fetches the desired operating system and flashes the SD card. But the main reason to use this is this allows to specify configuration such as WLAN, username, password, locale, and SSH without needing to configure them manually after installation or creating an automated cloud-init configuration. So after the OS image gets flashed, you just put the SD card and wait for the Raspberry Pi to boot without having to plug in a keyboard and monitor. If you also configure DHCP reservation on your router, then you can directly SSH into your server moments after you boot the device.

Core Infrastructure

These are applications that are crucial to the homelab network so want to make sure these stay up and unaffected when other applications fail. In my current network I have:

• Traefik - reverse proxy
• Pihole - DNS sinkhole (Adblocker)
• Tailscale VPN - remote connection
• Portainer - docker management

Tailscale

Tailscale is the easiest to install as no setup is required head on to https://tailscale.com/download download on your machine. For Linux this can be as simple as this.

{sh icon}$ curl -fsSL https://tailscale.com/install.sh | sh

Then after the installation, go to the provided link and then sign in to authenticate your server. You'll see your machine status as connected in your admin dashboard.

Traefik

I'll be using docker-compose files as this allows for easy configuration management. I highlighted some configuration <replace-me> you have to replace like mounting files/volumes, and your domain name. Make sure to create traefik.yml and acme.json before you spin up the container. The CF_DNS_API_TOKEN is the Cloudflare API token that is necessary for ACME DNS-01 protocol to get a TLS certificate from Let's Encrypt.

services:
  traefik:
    container_name: traefik
    image: traefik:v3.3
    networks:
      - reverse-proxy
    ports:
      - "80:80"
      - "443:443"
    environment:
      - CF_DNS_API_TOKEN
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - <path to traefik.yml>:/etc/traefik/traefik.yml:ro
      - <path to acme.json>:/acme.json
    labels:
      - traefik.enable=true
      - traefik.http.services.traefik.loadbalancer.server.port=8080
      - traefik.http.routers.traefik.rule=Host(`<traefik.domain.tld>`)
      - traefik.http.routers.traefik.entrypoints=websecure
      - traefik.http.routers.traefik.tls=true
      - traefik.http.routers.traefik.tls.certresolver=myresolver
      - traefik.http.routers.traefik.tls.domains[0].main=<domain.tld>
      - traefik.http.routers.traefik.tls.domains[0].sans=<*.domain.tld>
      - traefik.http.routers.traefik.service=api@internal
    restart: unless-stopped

networks:
  reverse-proxy:
    external: true

CF_DNS_API_TOKEN=<your api token here>

The file traefik.yml contains the static configuration for Traefik. Simply replace your email. Also, you might want to change the caServer to the staging server while testing to prevent rate limits to the production server.

providers:
  docker:
    endpoint: "unix:///var/run/docker.sock"
    exposedByDefault: false
api:
  insecure: true
  dashboard: true
  debug: true
log:
  level: DEBUG
serversTransports:
  insecureSkipVerify: true
entrypoints:
  web:
    address: ":80"
      http:
        redirections:
          entryPoint:
          to: websecure
  websecure:
    address: ":443"
certificatesResolvers:
  myresolver:
    acme:
      email: <email>
      storage: acme.json
      caServer: https://acme-v02.api.letsencrypt.org/directory # prod (default)
      # caServer: https://acme-staging-v02.api.letsencrypt.org/directory # staging
      dnsChallenge:
        provider: cloudflare
        resolvers:
          - "1.1.1.1:53"
          - "1.0.0.1:53"

After this run, {sh icon} $ docker compose up -d to spin up the Traefik container and check the dashboard at https://traefik.domain.tld. Check the logs using {sh icon} $ docker logs traefik for debugging information. You can turn debugging off in traefik.yml by removing the log: level: DEBUG lines.

Pi-hole

For pihole, this is a similar process. Just edit the highlighted lines just like earlier. For find your timezone here. I added a dnsmasq entry that adds a wildcard DNS entry *.domain.tld to point to your reverse proxy IP. A wildcard DNS entry simply means any subdomain under the domain.tld which is signified by the asterisk. If you prefer to set DNS entry somewhere else simply remove these lines. Notice that the labels are the same as the one in Traefik, the allows Traefik to dynamically find routing information about your containers. Simply copy this set of labels to your containers and change the port corresponding to what your container uses.

# More info at https://github.com/pi-hole/docker-pi-hole/ and https://docs.pi-hole.net/
services:
  pihole:
    container_name: pihole
    image: pihole/pihole:latest
    ports:
      - "53:53/tcp"
      - "53:53/udp"
    networks:
      - reverse-proxy
    environment:
	  - TZ=<America/New_York>
      - FTLCONF_webserver_api_password=<web-password>
      - FTLCONF_dns_listeningMode=all
      - FTLCONF_dns_upstreams=<upstream dns servers>            # separate by semicolon
      - FTLCONF_misc_etc_dnsmasq_d=true
      - FTLCONF_misc_dnsmasq_lines=address=/domain.tld/<ip-address>
    volumes:
      - "<path to etc pihole>:/etc/pihole"
    cap_add:
      - SYS_TIME
      - SYS_NICE
    restart: unless-stopped
    labels:
      - traefik.enable=true
      - traefik.http.services.pihole.loadbalancer.server.port=80
      - traefik.http.routers.pihole.rule=Host(`<pihole.domain.tld>`)
      - traefik.http.routers.pihole.entrypoints=websecure
      - traefik.http.routers.pihole.tls=true
      - traefik.http.routers.pihole.tls.certresolver=myresolver
      - traefik.http.routers.pihole.tls.domains[0].main=<domain.tld>
      - traefik.http.routers.pihole.tls.domains[0].sans=<*.domain.tld>
networks:
  reverse-proxy:
    external: true

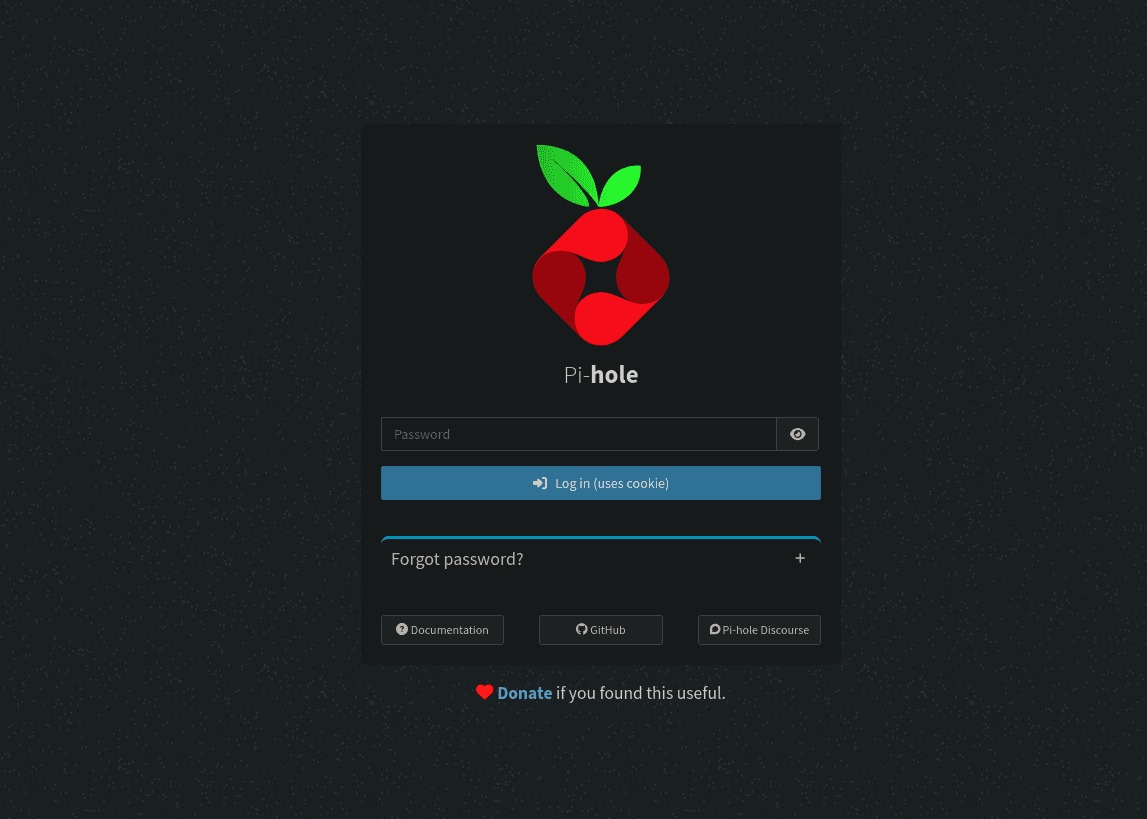

You should see a login screen like this at https://<pihole.domain.tld>/admin, then simply sign in with your provided web password earlier.

Portainer

The config for Portainer is straightforward, simply change the domain in the Traefik labels like before.

services:
  portainer:
    container_name: portainer
    image: portainer/portainer-ce:lts
    ports:
      - "8000:8000"
    networks:
      - reverse-proxy
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
      - "portainer_data:/data"
    restart: always
    labels:
      - traefik.enable=true
      - traefik.http.services.portainer.loadbalancer.server.port=9000
      - traefik.http.routers.portainer.rule=Host(`portainer.domain.tld`)
      - traefik.http.routers.portainer.tls=true
      - traefik.http.routers.portainer.tls.certresolver=myresolver
      - traefik.http.routers.portainer.tls.domains[0].main=domain.tld
      - traefik.http.routers.portainer.tls.domains[0].sans=*.domain.tld
      - traefik.http.routers.portainer.entrypoints=websecure

volumes:
  portainer_data:
    external: true

networks:
  reverse-proxy:
    external: true

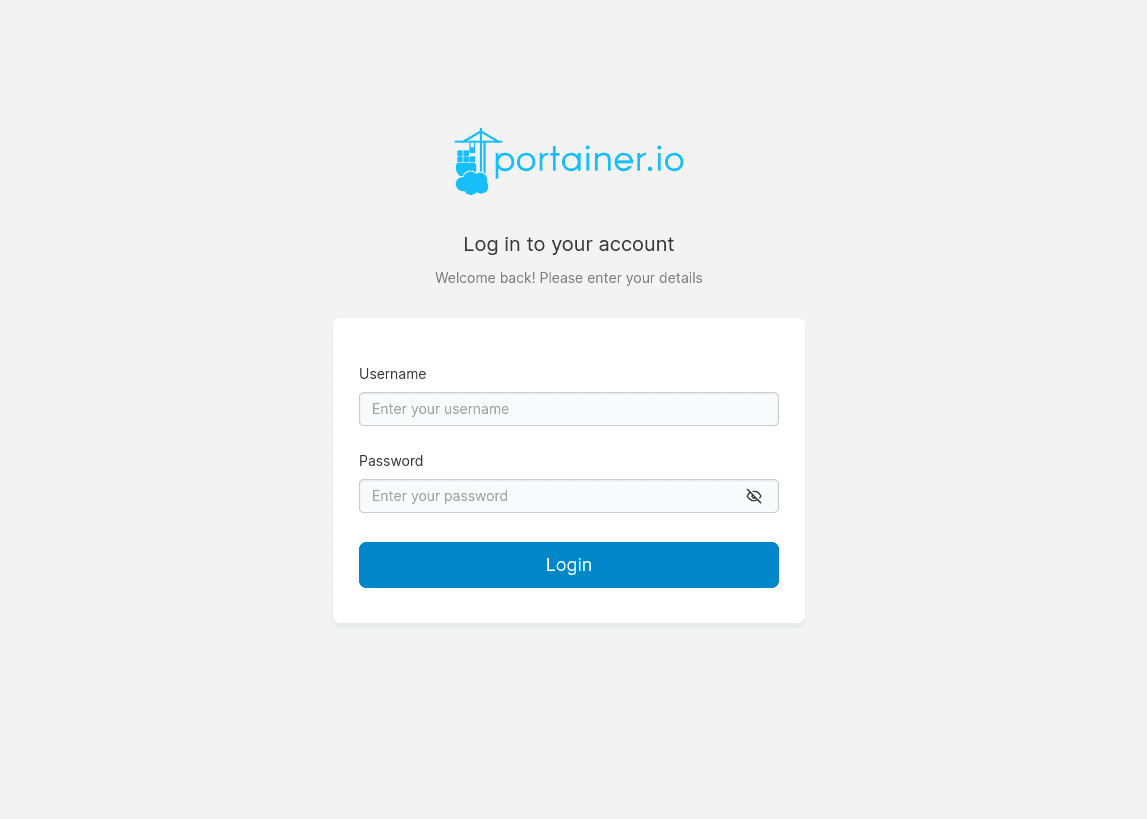

After spinning up, go to https://<portainer.domain.tld> and go through the initial setup process. Then you should be able to see this login screen.

Limitations

One major limitation of this setup is that the Raspberry Pi is a low power machine. Although it has decent processing power, my device only has 2 GB of ram which limits the number of applications I can run at the same time. I would need better hardware if I would want to run heavier applications. But for lightweight applications that you want to keep running 24/7, this power efficiency becomes a major advantage.

Future Plans

I would like to try deploying Nextcloud so I can self-host my own Google Drive. This allows to go from the free 25 GB google provides to as big as a few Terabytes (1000+ GB) as long as I have the storage for it. With the help of Tailscale, I can now access Nextcloud from anywhere in the world. Aside from Nextcloud, I would like to try deploying Home Assistant, a self-hosted home automation, to control my smart lights at home. Let's see where this takes me! 🚀
